SUITABLE FOR TCM & EP TRUCKS
TCM 700 SERIES FG28N5 FG30N5 FHG30N5 FD28Z5 FD30Z5 FHD 30Z5
REF NUMBER LS2293
Piston Diameter (inch) D1
Number of mounting holes AT-MG
Dimension (mm) L
Dimension (mm) D2
Thread inlet TA1
Dimension (mm) C1
Thread mounting holes TA2
Type of Oil
1 1/8
2
78
34
M10
44
M8
HR
PISTON DIA 1 1/8
PISTON DIA 28.58MM
FIXATION HOLES 2
LENGTH OF CYLINDER 78.00MM
NECK DIA D2 34MM

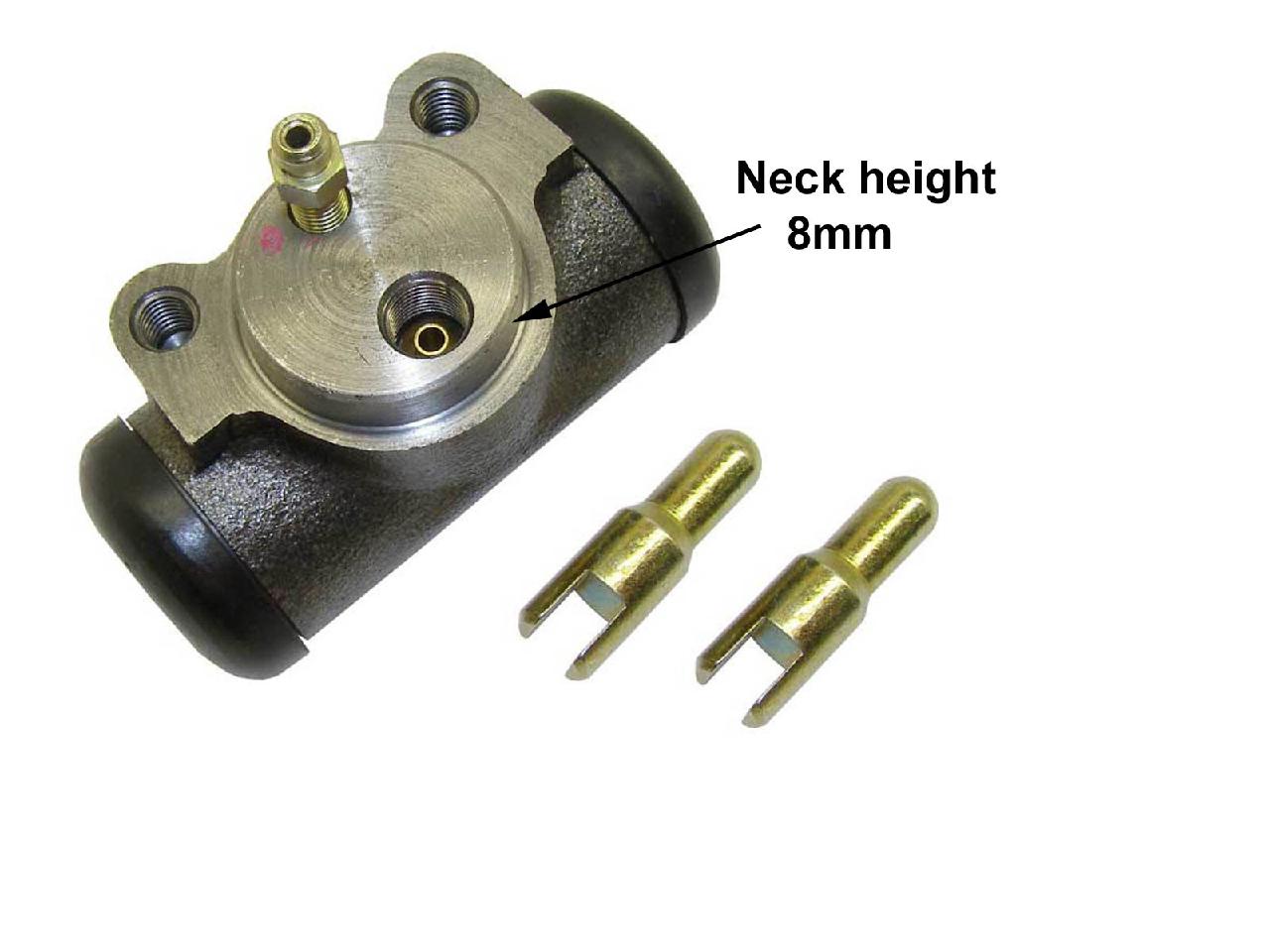

NECK HEIGHT 8.00MM
TYPE OF THREAD M10
