HYSTER WHEEL BRAKE CYLINDER (LS2054)

Compare Products
Price £56.00 + VAT
Add to Enquiry
Add to Wishlist
Qty:
Bookmark & Share
Tweet This  Bookmark with Del.icio.us Digg This! Post to Reddit Share on Facebook Post to StumbleUpon Bookmark with Google
  • Overview

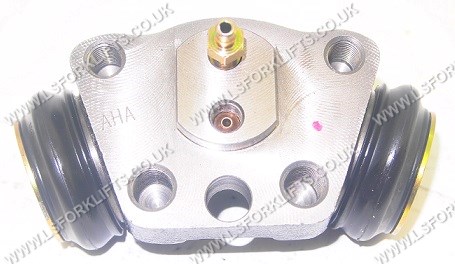

HYSTER WHEEL BRAKE CYLINDER
SUITABLE FOR
H2.00XL, H2.500XL (A177)
H40-50-60XL, H2.00-2.50-3.00XL (C177)
REF NUMBER LS2054



Piston Diameter (inch) D1

Number of mounting holes AT-MG

Dimension (mm) L

Dimension (mm) D2

Thread inlet TA1

Dimension (mm) C1

Thread mounting holes TA2

Type of Oil

 1 1/4

 4

 106

 36

 3/8 UNF X 24

 44

 7/16 UNF  X 20

 BRAKE  FLUID





ITEM IS REFERENCE '1' ON THE DRAWINGS



CABLE GUIDE, 14 BRAKE LINK, 29 BRAKE SHOES 25 BRAKE SHOES 25 BRAKE

SHOE ADJUSTER, 21 BRAKE SHOE LEVER, 17 RETURN SPRING, 33 RETURN SPRING, 24 RETURN SPRING, 31 BRAKE PLATE, RETAINING RING, 15 WHEEL BRAKE

CYLINDER, 1
