TCM SIDE ROLLER (LS4790)

Compare Products
Price £26.00 + VAT
Add to Enquiry
Add to Wishlist
Qty:
Bookmark & Share
Tweet This  Bookmark with Del.icio.us Digg This! Post to Reddit Share on Facebook Post to StumbleUpon Bookmark with Google
  • Overview

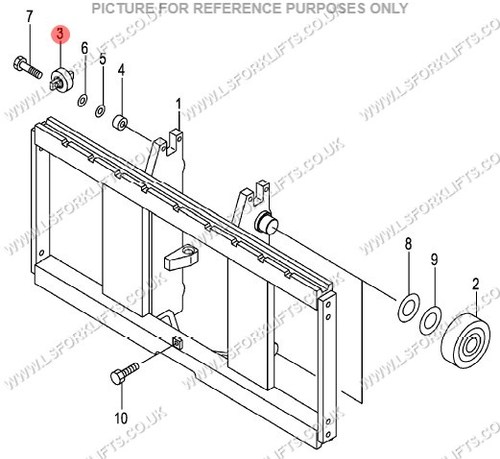

  • FITTING ILLUSTRATION

TCM SIDE ROLLER
SUITABLE FOR FD25T3, FD30T3
REF NUMBER LS4790

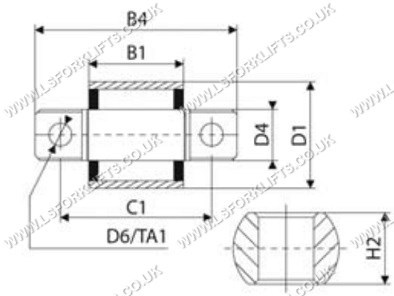

 MAXIMUM  DIAMETER  OUTER RING  D1 (MM)

 WIDTH OUTER  RING B1 (MM)

 OUTER  DIAMETER  AXLE D4 (MM)

 WIDTH WITH  AXLE B4 (MM)

 BIGGEST  CENTRE  DISTANCE  MOUNTING  HOLES C1 (MM)

 DIAMETER  HOLE D6 (MM)

 HEIGHT  MOUNTING H2  (MM)

 42

 30

 19.5

 80

 60

 11

 12
