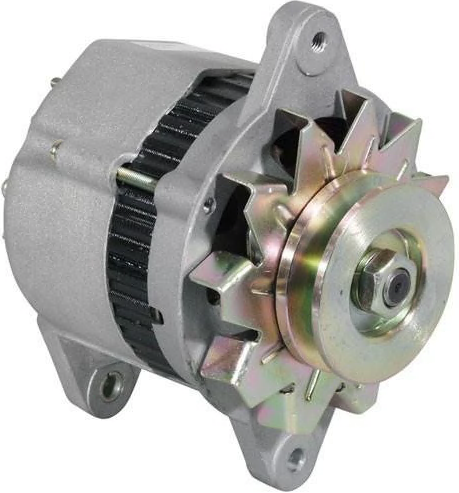

CATERPILLAR ALTERNATOR (LS10431)

Add to Enquiry

Add to Wishlist

Qty:

SUITABLE FOR CAT DP20 6BN TRUCKS

Type of mounting	type A: 3 fixing feet, 2 in line
Voltage U (V)	12
Current I (A)	35
Bracket width L1 (mm)	13
Bracket width L2 (mm)	13
Support width L3 (mm)	13
Mounting bracket distance X (mm)	80
Length Y (mm)	40
Mounting hole diameter D1 (mm)	10
Thread type	M8
Position of the legs	30-60
Center distance C (mm)	155
Integrated regulator	YES
Cooling fan	external cooling
Equipped with vacuum pump	NO
Plug type	14
Number of belts	1
Diameter pulley D2 (mm)	72.5
Width of the tread W (mm)	13
